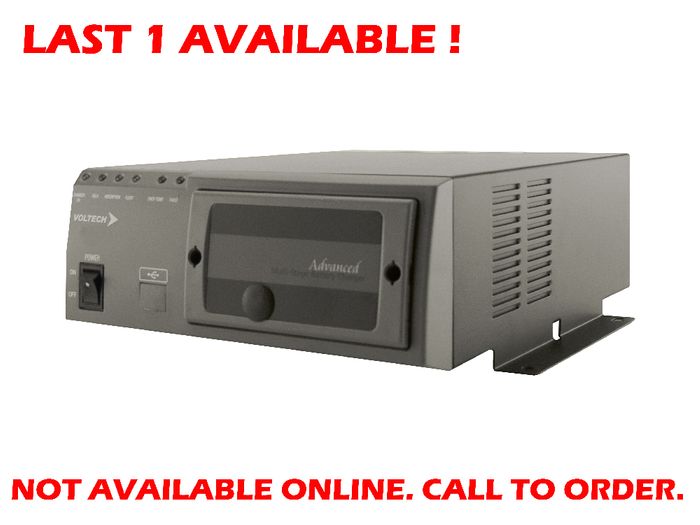

Charger Voltech 240V-24V (30A)

Stock Code:
BC-2430P

MODELBC-2430P
OUTPUT CURRENT
30A
INPUT VOLTAGE200-240VAC 50 HZ
CHARGE VOLTAGE

WET28.8V
LiFePO429.2V
AGM28.6V
GEL 128.2V
GEL 228.6V
CALCIUM30.2V
USER 1 (PROGRAMMABLE)24-32V
USER 2 (PROGRAMMABLE)24.32V
EQUALIZATION31.0V
FLOAT VOLTAGE27.0/27.2/26.4/27.4/27.6/27.6
SOFT START VOLTAGE<21.0V
SOFT START CURRENT1/2 OF MAX
EFFICIENCY83%
NO. OF OUTPUTS2
DIMENSIONS (W.OUT BRACKET)320X200X80
DIMENSIONS (BRACKET)350X240X90



The Voltech range of chargers also have a Lithium setting for LiFePO4 type batteries.
The MAX Output Current can also be adjusted in 10% increments to suit the size of battery being charged.

FEATURES
•5 Stage Charger
•Includes soft start feature for very discharged batteries
•Adjustable output current (concealed selector)
•Can be used as a power supply
•Suitable for lithium(LiFePO4) batteries
•User defined programmable charging (via PC)
•Microprocessor controlled charging
•Manual or auto equalization
•MCU Monitoring
•Temperature sensor included

  • Brand:
    Voltech
  • Dimensions:
    350x240x90
  • Weight:
    3.95
  • Carton Qty:
    4
  • Warranty Information:
    24 Months
In Stock
